FC3BACAGI16.0晶振,FC3BA有源晶振,Fox Electronics福克斯晶振

產品型號：89916547
頻率：16.0000MHZ車規晶振
尺寸：3.2*2.5mm無源晶振
產品介紹：高可靠車規級晶振｜寬溫耐高溫,精工品質適配汽車嚴苛工況在汽車智能化、電子化高速發展的當下,車載電子設備對核心頻率元器件的穩定性、耐受性與精準度要求愈發嚴苛...

高可靠車規級晶振｜寬溫耐高溫,精工品質適配汽車嚴苛工況

在汽車智能化、電子化高速發展的當下,車載電子設備對核心頻率元器件的穩定性、耐受性與精準度要求愈發嚴苛,普通民用晶振早已無法適配車載高溫、溫差大、工況復雜的使用環境.深圳市壹兆電子科技有限公司深耕晶振行業多年,專業代理臺灣、日本、歐美各大知名品牌晶振,主打高品質安防GPRS導航晶振車規級晶振、寬溫晶振、耐高溫晶振產品,憑借過硬的產品品質與完善的供貨服務,成為汽車電子、工控設備等領域客戶的優選合作伙伴,咨詢采購熱線：13590198504（手機）、0755-27876236（座機）.

公司主營多款主流高性能晶振產品,其中FC3BACAGI16.0晶振、FC3BA有源晶振、Fox Electronics福克斯晶振等核心品類備受市場認可.主推的3225 16M 12PF 30PP車規晶振,專為車載嚴苛工況量身打造,工作溫度覆蓋-40℃至+125℃,極致的寬溫耐受能力,可完美適配車載機艙、底盤、車載影音、智能控制系統等多場景高低溫工作環境,徹底解決普通晶振高溫失靈、低溫頻偏的行業痛點.

品質是產品的核心競爭力,我司全系汽車電子晶振車規晶振均經過嚴苛的資質認證與工藝打磨.產品嚴格通過AEC Q200汽車行業權威認證,生產體系全面遵循IATF-16949國際質量管理標準,從原料篩選、生產加工到成品檢測,全流程嚴控品質,杜絕產品瑕疵.在精度表現上,產品頻率公差低至±10PPM,頻率穩定性低至±20PPM,30PPM的常規精度配置可滿足絕大多數車載設備的精準頻率需求,年度老化誤差僅±5百萬分之一,長期運行精準穩定,不易出現頻率偏移、信號紊亂等問題.

在核心規格參數上,這款車規晶振性能優勢突出.產品頻率范圍覆蓋8.000~150.000MHz,可適配多品類車載電子設備需求,串聯電容3pF,標準負載電容搭配100µW穩定驅動功率,適配性極強.產品存儲溫度可達-55℃~150℃,耐候性拉滿,同時支持260℃/10秒雙次焊接工藝,適配自動化貼片生產,加工適配性優異.

工藝與環保合規層面,產品采用優質縫隙封裝工藝,密封性強、抗震動、抗干擾,完美適配汽車顛簸、電磁復雜的工作環境.端子采用鎳底鍍金鍍層工藝,鍍金層0.3~1µm、鎳底層1.27~8.89µm,有效抗氧化、防腐蝕,保障長期通電穩定.全系產品無鉛生產,嚴格符合RoHS、REACH最新環保標準,合規無憂,可適配國內外各類車載產品出口需求.

深圳市壹兆電子始終秉持“品質為先、誠信共贏”的經營理念,依托全球優質供應鏈資源,為客戶提供原裝正品、現貨速供、定制適配的一站式貼片晶振采購服務.無論是常規車載晶振,還是特殊寬溫、高精度、耐高溫定制型號,均可快速匹配.深耕行業多年,我們憑借穩定的產品質量、透明的價格體系、完善的售后保障,贏得了廣大車企、電子廠商的高度認可與長期信賴,是您采購高端車規晶振的可靠選擇.

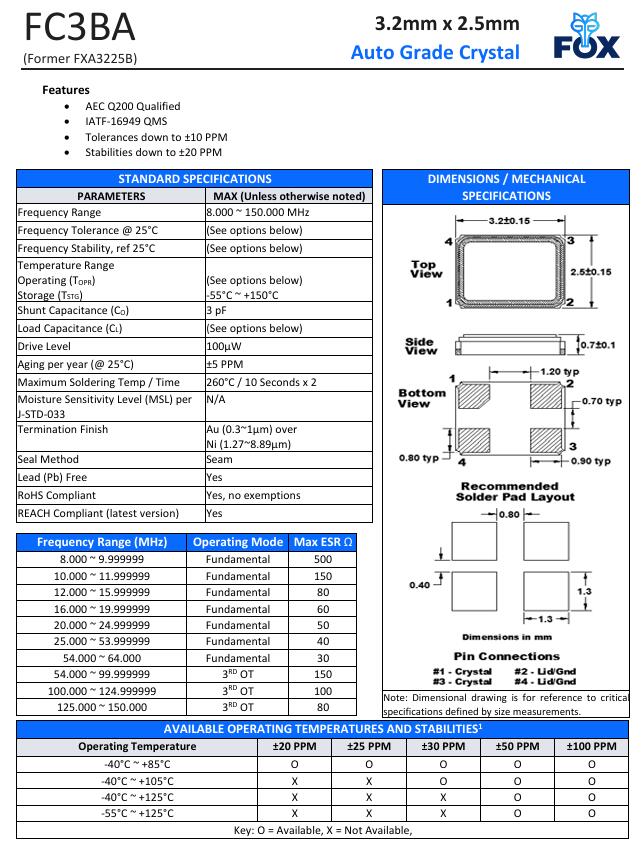

FC3BACAGI16.0車規級晶振,寬溫晶振,耐高溫晶振

編碼	FC3BACAGI16.0
品牌	Fox Electronics福克斯無源晶振
型號	FC3BA
頻率	16.0000MHZ
精度	±30ppm
負載電容	12PF
產地	美國
工作溫度	-40°C +125°C
尺寸	3.2*2.5mm

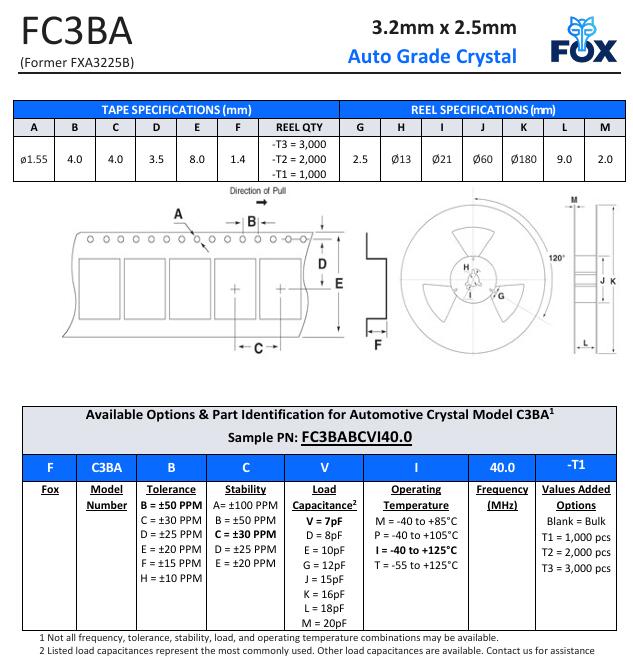

FC3BACAGI16.0車規級晶振,寬溫晶振,耐高溫晶振

晶振料號編碼	品牌	型號	晶體	長	寬	高	工作溫度	頻率	頻率精度	負載	車規晶振
FC0BSFEEN23A99675-T2	Fox	FC0BS	MHz Crystal	1.6mm	1.2mm	0.45mm	-20°C ~ 85°C	23.99675 MHz	±15ppm	10 pF
FC0BSFEEN23A99675-T3	Fox	FC0BS	MHz Crystal	1.6mm	1.2mm	0.45mm	-20°C ~ 85°C	23.99675 MHz	±15ppm	10 pF
FC1BACBEI20.0-T3	Fox	FC1BA	MHz Crystal	2mm	1.6mm	1mm	-40°C ~ 12°C	20 MHz	±30ppm	10 pF	AEC-Q200
FC1BAEBDI16.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	16 MHz	±20ppm	8 pF	AEC-Q200
FC1BAEBDI20.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	20 MHz	±20ppm	8 pF	AEC-Q200
FC1BAEBDI24.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	24 MHz	±20ppm	8 pF	AEC-Q200
FC1BAEBDI25.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	25 MHz	±20ppm	8 pF	AEC-Q200
FC1BAEBDI40.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	40 MHz	±20ppm	8 pF	AEC-Q200
FC1BAEBEI16.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	16 MHz	±20ppm	10 pF	AEC-Q200
FC1BAEBEI20.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	20 MHz	±20ppm	10 pF	AEC-Q200
FC1BAEBEI24.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	24 MHz	±20ppm	10 pF	AEC-Q200
FC1BAEBEI25.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	25 MHz	±20ppm	10 pF	AEC-Q200
FC1BAEBEI40.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	40 MHz	±20ppm	10 pF	AEC-Q200
FC1BAEBGI16.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	16 MHz	±20ppm	12 pF	AEC-Q200
FC1BAEBGI20.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	20 MHz	±20ppm	12 pF	AEC-Q200
FC1BAEBGI24.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	24 MHz	±20ppm	12 pF	AEC-Q200
FC1BAEBGI25.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	25 MHz	±20ppm	12 pF	AEC-Q200
FC1BAEBGI40.0-T1	Fox	FC1BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	40 MHz	±20ppm	12 pF	AEC-Q200
FC1BQCCEK27.12-1	Fox	FC1BQ	MHz Crystal	2mm	1.6mm	0.7mm	-30°C ~ 85°C	27.12 MHz	±30ppm	10 pF
FC1BSCBEM27.12-T3	Fox	FC1BS	MHz Crystal	2mm	1.6mm	0.45mm	-40°C ~ 85°C	27.12 MHz	±30ppm	10 pF
FC1BSCCEM16.0-T3	Fox	FC1BS	MHz Crystal	2mm	1.6mm	0.45mm	-40°C ~ 85°C	16 MHz	±30ppm	10 pF
FC1BSHFEM32.0-T3	Fox	FC1BS	MHz Crystal	2mm	1.6mm	0.45mm	-40°C ~ 85°C	32 MHz	±10ppm	10 pF
FC1BSHHVK50.0-1-T3	Fox	FC1BS	MHz Crystal	2mm	1.6mm	0.45mm	-30°C ~ 85°C	50 MHz	±10ppm	7 pF
FC2BACBEI16.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	1mm	-40°C ~ 12°C	16 MHz	±30ppm	10 pF	AEC-Q200
FC2BACBEI16.0-T3	Fox	FC2BA	MHz Crystal	2.5mm	2mm	1mm	-40°C ~ 12°C	16 MHz	±30ppm	10 pF	AEC-Q200
FC2BAEBDI12.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	12 MHz	±20ppm	8 pF	AEC-Q200
FC2BAEBDI16.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	16 MHz	±20ppm	8 pF	AEC-Q200
FC2BAEBDI20.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	20 MHz	±20ppm	8 pF	AEC-Q200
FC2BAEBDI24.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	24 MHz	±20ppm	8 pF	AEC-Q200
FC2BAEBDI25.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	25 MHz	±20ppm	8 pF	AEC-Q200
FC2BAEBDI40.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	40 MHz	±20ppm	8 pF	AEC-Q200
FC2BAEBEI12.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	12 MHz	±20ppm	10 pF	AEC-Q200
FC2BAEBEI16.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	16 MHz	±20ppm	10 pF	AEC-Q200
FC2BAEBEI20.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	20 MHz	±20ppm	10 pF	AEC-Q200
FC2BAEBEI24.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	24 MHz	±20ppm	10 pF	AEC-Q200
FC2BAEBEI25.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	25 MHz	±20ppm	10 pF	AEC-Q200
FC2BAEBEI40.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	40 MHz	±20ppm	10 pF	AEC-Q200
FC2BAEBGI25.0-T1	Fox	FC2BA	MHz Crystal	2.5mm	2mm	0.65mm	-40°C ~ 125°C	25 MHz	±20ppm	12 pF	AEC-Q200
FC2BSBBMM16.0-T1	Fox	FC2BS	MHz Crystal	2.5mm	2mm	0.45mm	-40°C ~ 85°C	16 MHz	±50ppm	20 pF
FC2BSBBMM16.0-T3	Fox	FC2BS	MHz Crystal	2.5mm	2mm	0.45mm	-40°C ~ 85°C	16 MHz	±50ppm	20 pF
FC3BABBKM20.0-T3	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	1mm	-40°C ~ 85°C	20 MHz	±50ppm	16 pF	AEC-Q200
FC3BACAGI16.0-T3	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	1mm	-40°C ~ 12°C	16 MHz	±30ppm	12 pF	AEC-Q200
FC3BACALI16.0-T3	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	1mm	-40°C ~ 12°C	16 MHz	±30ppm	18 pF	AEC-Q200
FC3BACBDI16.0-T3	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	1mm	-40°C ~ 12°C	16 MHz	±30ppm	8 pF	AEC-Q200
FC3BACCGM20.0-T3	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	1mm	-40°C ~ 85°C	20 MHz	±30ppm	12 pF	AEC-Q200
FC3BACCLP12.0-T3	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	1mm	-40°C ~ 10°C	12 MHz	±30ppm	18 pF	AEC-Q200
FC3BAEBDI12.0-T1	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	0.7mm	-40°C ~ 125°C	12 MHz	±20ppm	8 pF	AEC-Q200
FC3BAEBDI16.0-T1	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	0.7mm	-40°C ~ 125°C	16 MHz	±20ppm	8 pF	AEC-Q200
FC3BAEBDI20.0-T1	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	0.7mm	-40°C ~ 125°C	20 MHz	±20ppm	8 pF	AEC-Q200
FC3BAEBDI24.0-T1	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	0.7mm	-40°C ~ 125°C	24 MHz	±20ppm	8 pF	AEC-Q200
FC3BAEBDI25.0-T1	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	0.7mm	-40°C ~ 125°C	25 MHz	±20ppm	8 pF	AEC-Q200
FC3BAEBDI40.0-T1	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	0.7mm	-40°C ~ 125°C	40 MHz	±20ppm	8 pF	AEC-Q200
FC3BAEBDI8.0-T1	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	0.7mm	-40°C ~ 125°C	8 MHz	±20ppm	8 pF	AEC-Q200
FC3BAEBGI12.0-T1	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	0.7mm	-40°C ~ 125°C	12 MHz	±20ppm	12 pF	AEC-Q200
FC3BAEBGI24.0-T1	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	0.7mm	-40°C ~ 125°C	24 MHz	±20ppm	12 pF	AEC-Q200
FC3BAEBGI25.0-T1	Fox	FC3BA	MHz Crystal	3.2mm	2.5mm	0.7mm	-40°C ~ 125°C	25 MHz	±20ppm	12 pF	AEC-Q200
FC3BAEBGI40.0-T1	Fox	FC3BA	MHz Crystal	2mm	1.6mm	0.55mm	-40°C ~ 125°C	40 MHz	±20ppm	12 pF	AEC-Q200
FC3BQBBDM20.0-T3	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-40°C ~ 85°C	20 MHz	±50ppm	8 pF
FC3BQBBME12.0-T3	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-10°C ~ 70°C	12 MHz	±50ppm	20 pF
FC3BQBBME16.0-T1	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-10°C ~ 70°C	16 MHz	±50ppm	20 pF
FC3BQBBME24.0-T1	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-10°C ~ 70°C	24 MHz	±50ppm	20 pF
FC3BQBBME25.0-T1	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-10°C ~ 70°C	25 MHz	±50ppm	20 pF
FC3BQBBME25.0-T3	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-10°C ~ 70°C	25 MHz	±50ppm	20 pF
FC3BQBBME27.0-T1	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-10°C ~ 70°C	27 MHz	±50ppm	20 pF
FC3BQBBMM12.0-T1	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-40°C ~ 85°C	12 MHz	±50ppm	20 pF
FC3BQBBMM12.0-T3	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-40°C ~ 85°C	12 MHz	±50ppm	20 pF
FC3BQBBMM24.0-T1	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-40°C ~ 85°C	24 MHz	±50ppm	20 pF
FC3BQBBMM24.0-T3	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-40°C ~ 85°C	24 MHz	±50ppm	20 pF
FC3BQBBMM25.0-T1	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-40°C ~ 85°C	25 MHz	±50ppm	20 pF
FC3BQBBMM25.0-T3	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-40°C ~ 85°C	25 MHz	±50ppm	20 pF
FC3BQBBVM25.0-T3	Fox	FC3BQ	MHz Crystal	3.2mm	2.5mm	0.6mm	-40°C ~ 85°C	25 MHz	±50ppm	7 pF
FC3BSBBEM26.0-T3	Fox	FC3BS	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	26 MHz	±50ppm	10 pF
FC3BSBBLM25.0-T3	Fox	FC3BS	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	25 MHz	±50ppm	18 pF
FC3BSBBMM25.0-T3	Fox	FC3BS	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	25 MHz	±50ppm	20 pF
FC3BSHFEM12.0-T3	Fox	FC3BS	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	12 MHz	±10ppm	10 pF
FC3BSHHEF26.0-T3	Fox	FC3BS	MHz Crystal	3.2mm	2.5mm	0.8mm	-20°C ~ 70°C	26 MHz	±10ppm	10 pF
FC3BSHHEF32.0-T3	Fox	FC3BS	MHz Crystal	3.2mm	2.5mm	0.8mm	-20°C ~ 70°C	32 MHz	±10ppm	10 pF
FC3BSHLGA27.0-1-T3	Fox	FC3BS	MHz Crystal	3.2mm	2.5mm	0.8mm	0°C ~ 50°C	27 MHz	±10ppm	12 pF
FC3VAEEGM50.0-T3	Fox	FC3VA	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	50 MHz	±20ppm	12 pF
FC3VREEDM38.4-T1	Fox	FC3VR	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	38.4 MHz	±20ppm	8 pF
FC3VREEDM38.88-T1	Fox	FC3VR	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	38.88 MHz	±20ppm	8 pF
FC3VREEDM40.0-T1	Fox	FC3VR	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	40 MHz	±20ppm	8 pF
FC3VREEDM48.0-T1	Fox	FC3VR	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	48 MHz	±20ppm	8 pF
FC3VREEEM38.4-T1	Fox	FC3VR	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	38.4 MHz	±20ppm	10 pF
FC3VREEGM36.0-T1	Fox	FC3VR	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	36 MHz	±20ppm	12 pF
FC3VREEGM38.4-T1	Fox	FC3VR	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	38.4 MHz	±20ppm	12 pF
FC3VREEGM38.88-T1	Fox	FC3VR	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	38.88 MHz	±20ppm	12 pF
FC3VREEGM40.0-T1	Fox	FC3VR	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	40 MHz	±20ppm	12 pF
FC3VREEGM50.0-T1	Fox	FC3VR	MHz Crystal	3.2mm	2.5mm	0.8mm	-40°C ~ 85°C	50 MHz	±20ppm	12 pF
FC4SDBBMF3.2-T1 晶振廠家	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	3.2 MHz	±50ppm	20 pF
FC4SDCBGF24.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	24 MHz	±30ppm	12 pF
FC4SDCBGF4.194304-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	4.194304 MHz	±30ppm	12 pF
FC4SDCBGM8.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-40°C ~ 85°C	8 MHz	±30ppm	12 pF
FC4SDCBKF24.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	24 MHz	±30ppm	16 pF
FC4SDCBLF3.579545-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	3.579545 MHz	±30ppm	18 pF
FC4SDCBMF10.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	10 MHz	±30ppm	20 pF
FC4SDCBMF11.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	11 MHz	±30ppm	20 pF
FC4SDCBMF11.0592-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	11.0592 MHz	±30ppm	20 pF
FC4SDCBMF12.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	12 MHz	±30ppm	20 pF
FC4SDCBMF12.288-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	12.288 MHz	±30ppm	20 pF
FC4SDCBMF14.31818-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	14.31818 MHz	±30ppm	20 pF
FC4SDCBMF14.7456-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	14.7456 MHz	±30ppm	20 pF
FC4SDCBMF16.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	16 MHz	±30ppm	20 pF
FC4SDCBMF18.432-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	18.432 MHz	±30ppm	20 pF
FC4SDCBMF19.6608-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	19.6608 MHz	±30ppm	20 pF
FC4SDCBMF20.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	20 MHz	±30ppm	20 pF
FC4SDCBMF22.1184-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	22.1184 MHz	±30ppm	20 pF
FC4SDCBMF24.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	24 MHz	±30ppm	20 pF
FC4SDCBMF24.576-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	24.576 MHz	±30ppm	20 pF
FC4SDCBMF25.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	25 MHz	±30ppm	20 pF
FC4SDCBMF27.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	27 MHz	±30ppm	20 pF
FC4SDCBMF3.579545-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	3.579545 MHz	±30ppm	20 pF
FC4SDCBMF3.6864-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	3.6864 MHz	±30ppm	20 pF
FC4SDCBMF4.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	4 MHz	±30ppm	20 pF
FC4SDCBMF4.9152-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	4.9152 MHz	±30ppm	20 pF
FC4SDCBMF5.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	5 MHz	±30ppm	20 pF
FC4SDCBMF6.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	6 MHz	±30ppm	20 pF
FC4SDCBMF7.3728-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	7.3728 MHz	±30ppm	20 pF
FC4SDCBMF8.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	8 MHz	±30ppm	20 pF
FC4SDCBMF8.192-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	8.192 MHz	±30ppm	20 pF
FC4SDCBMF9.8304-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-20°C ~ 70°C	9.8304 MHz	±30ppm	20 pF
FC4SDCBMM10.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-40°C ~ 85°C	10 MHz	±30ppm	20 pF
FC4SDCBMM12.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-40°C ~ 85°C	12 MHz	±30ppm	20 pF
FC4SDCBMM16.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-40°C ~ 85°C	16 MHz	±30ppm	20 pF
FC4SDCBMM20.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-40°C ~ 85°C	20 MHz	±30ppm	20 pF
FC4SDCBMM25.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-40°C ~ 85°C	25 MHz	±30ppm	20 pF
FC4SDCBMM3.6864-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-40°C ~ 85°C	3.6864 MHz	±30ppm	20 pF
FC4SDCBMM4.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-40°C ~ 85°C	4 MHz	±30ppm	20 pF
FC4SDCBMM6.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-40°C ~ 85°C	6 MHz	±30ppm	20 pF
FC4SDCBMM8.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-40°C ~ 85°C	8 MHz	±30ppm	20 pF
FC4SDCBMP8.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-40°C ~ 10°C	8 MHz	±30ppm	20 pF
FC4SDDDMC32.768-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	0°C ~ 70°C	32.768 MHz	±25ppm	20 pF
FC4SDEEKD26.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-10°C ~ 60°C	26 MHz	±20ppm	16 pF
FC4SDHCMM25.0-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-40°C ~ 85°C	25 MHz	±10ppm	20 pF
FC4SDHHUE44.545-1-T1	Fox	FC4SD	MHz Crystal	13.2mm	4.8mm	4.5mm	-10°C ~ 70°C	44.545 MHz	±10ppm	13 pF
FC4STBAMF16.0	Fox	FC4ST	MHz Crystal	11.4mm	4.7mm	3.6mm	-20°C ~ 70°C	16 MHz	±50ppm	20 pF
FC5AQBAAM8.0-T1	Fox	FC5AQ	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	8 MHz	±50ppm
FC5AQBAME22.1184-T1	Fox	FC5AQ	MHz Crystal	5mm	3.2mm	0.8mm	-10°C ~ 70°C	22.1184 MHz	±50ppm	20 pF
FC5AQBBME18.0-T1	Fox	FC5AQ	MHz Crystal	5mm	3.2mm	0.8mm	-10°C ~ 70°C	18 MHz	±50ppm	20 pF
FC5AQCCEC14.7456-T1	Fox	FC5AQ	MHz Crystal	5mm	3.2mm	0.8mm	0°C ~ 70°C	14.7456 MHz	±30ppm	10 pF
FC5AQCCMC24.0-T1	Fox	FC5AQ	MHz Crystal	5mm	3.2mm	0.8mm	0°C ~ 70°C	24 MHz	±30ppm	20 pF
FC5AQCCMF10.0-T1	Fox	FC5AQ	MHz Crystal	5mm	3.2mm	0.8mm	-20°C ~ 70°C	10 MHz	±30ppm	20 pF
FC5AQCCMM12.0-T1	Fox	FC5AQ	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	12 MHz	±30ppm	20 pF
FC5AQECLM25.0-T1	Fox	FC5AQ	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	25 MHz	±20ppm	18 pF
FC5BACAGI12.0-T1	Fox	FC5BA	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 12°C	12 MHz	±30ppm	12 pF	AEC-Q200
FC5BACALI12.0-T1	Fox	FC5BA	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 12°C	12 MHz	±30ppm	18 pF	AEC-Q200
FC5BACBEI12.0-T1	Fox	FC5BA	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 12°C	12 MHz	±30ppm	10 pF	AEC-Q200
FC5BACBLI8.0-1-T1	Fox	FC5BA	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 12°C	8 MHz	±30ppm	18 pF	AEC-Q200
FC5BACBMI12.0-T1	Fox	FC5BA	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 12°C	12 MHz	±30ppm	20 pF	AEC-Q200
FC5BAEEEM8.0-T1	Fox	FC5BA	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	8 MHz	±20ppm	10 pF	AEC-Q200
FC5BAEEMM8.0-T1	Fox	FC5BA	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	8 MHz	±20ppm	20 pF	AEC-Q200
FC5BQCBJF12.0-1-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	-20°C ~ 70°C	12 MHz	±30ppm	15 pF
FC5BQCBKM12.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	12 MHz	±30ppm	16 pF
FC5BQCCMC12.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	0°C ~ 70°C	12 MHz	±30ppm	20 pF
FC5BQCCMC16.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	0°C ~ 70°C	16 MHz	±30ppm	20 pF
FC5BQCCMC20.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	0°C ~ 70°C	20 MHz	±30ppm	20 pF
FC5BQCCMC24.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	0°C ~ 70°C	24 MHz	±30ppm	20 pF
FC5BQCCMC24.576-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	0°C ~ 70°C	24.576 MHz	±30ppm	20 pF
FC5BQCCMC25.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	0°C ~ 70°C	25 MHz	±30ppm	20 pF
FC5BQCCMM10.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	10 MHz	±30ppm	20 pF
FC5BQCCMM12.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	12 MHz	±30ppm	20 pF
FC5BQCCMM16.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	16 MHz	±30ppm	20 pF
FC5BQCCMM20.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	20 MHz	±30ppm	20 pF
FC5BQCCMM24.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	24 MHz	±30ppm	20 pF
FC5BQCCMM25.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	25 MHz	±30ppm	20 pF
FC5BQCCMM8.0-T1	Fox	FC5BQ	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	8 MHz	±30ppm	20 pF
FC5BSCBLM20.0-T1	Fox	FC5BS	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	20 MHz	±30ppm	18 pF
FC5BSCCEM19.6608-T1	Fox	FC5BS	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	19.6608 MHz	±30ppm	10 pF
FC5BSHFEM25.0-T1	Fox	FC5BS	MHz Crystal	5mm	3.2mm	0.8mm	-40°C ~ 85°C	25 MHz	±10ppm	10 pF
FC6ASCCEF25.0-T1	Fox	FC6AS	MHz Crystal	6mm	3.5mm	1.4mm	-20°C ~ 70°C	25 MHz	±30ppm	10 pF
FC6BSCCKF12.0-T1	Fox	FC6BS	MHz Crystal	6mm	3.5mm	1mm	-20°C ~ 70°C	12 MHz	±30ppm	16 pF
FC7ASBAMM9.216-T1	Fox	FC7AS	MHz Crystal	7.5mm	5mm	1.7mm	-40°C ~ 85°C	9.216 MHz	±50ppm	20 pF
FC7ASBBGD24.0-T1	Fox	FC7AS	MHz Crystal	7.5mm	5mm	1.7mm	-10°C ~ 60°C	24 MHz	±50ppm	12 pF
FC7ASBBMD10.0-T1	Fox	FC7AS	MHz Crystal	7.5mm	5mm	1.7mm	-10°C ~ 60°C	10 MHz	±50ppm	20 pF
FC7ASBBMD10.0-T2	Fox	FC7AS	MHz Crystal	7.5mm	5mm	1.7mm	-10°C ~ 60°C	10 MHz	±50ppm	20 pF
FC7ASBBMD20.0-T1	Fox	FC7AS	MHz Crystal	7.5mm	5mm	1.7mm	-10°C ~ 60°C	20 MHz	±50ppm	20 pF
FC7ASBBMD20.0-T2	Fox	FC7AS	MHz Crystal	7.5mm	5mm	1.7mm	-10°C ~ 60°C	20 MHz	±50ppm	20 pF
FC7ASBBMD24.576-T2	Fox	FC7AS	MHz Crystal	7.5mm	5mm	1.7mm	-10°C ~ 60°C	24.576 MHz	±50ppm	20 pF
FC7ASBBMD25.0-T2	Fox	FC7AS	MHz Crystal	7.5mm	5mm	1.7mm	-10°C ~ 60°C	25 MHz	±50ppm	20 pF
FC7ASBBMD9.8304-T2	Fox	FC7AS	MHz Crystal	7.5mm	5mm	1.7mm	-10°C ~ 60°C	9.8304 MHz	±50ppm	20 pF
FC7ASBBMM16.0-T1	Fox	FC7AS	MHz Crystal	7.5mm	5mm	1.7mm	-40°C ~ 85°C	16 MHz	±50ppm	20 pF
FC7ASBBMM9.216-T1	Fox	FC7AS	MHz Crystal	7.5mm	5mm	1.7mm	-40°C ~ 85°C	9.216 MHz	±50ppm	20 pF
FC7ASCCGM7.6-T1	Fox	FC7AS	MHz Crystal	7.5mm	5mm	1.7mm	-40°C ~ 85°C	7.6 MHz	±30ppm	12 pF
FC7BABBNP16.0-T1	Fox	FC7BA	MHz Crystal	7mm	5mm	1.1mm	-40°C ~ 10°C	16 MHz	±50ppm	22 pF	AEC-Q200
FC7BACAGI25.0-T1	Fox	FC7BA	MHz Crystal	7mm	5mm	1.1mm	-40°C ~ 12°C	25 MHz	±30ppm	12 pF	AEC-Q200
FC7BACALI25.0-T1	Fox	FC7BA	MHz Crystal	7mm	5mm	1.1mm	-40°C ~ 12°C	25 MHz	±30ppm	18 pF	AEC-Q200
FC7BACBMI25.0-T1	Fox	FC7BA	MHz Crystal	7mm	5mm	1.1mm	-40°C ~ 12°C	25 MHz	±30ppm	20 pF	AEC-Q200
FC7BSBBGM25.0-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	-40°C ~ 85°C	25 MHz	±50ppm	12 pF
FC7BSCCEF8.0-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	-20°C ~ 70°C	8 MHz	±30ppm	10 pF
FC7BSCCEM6.0-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	-40°C ~ 85°C	6 MHz	±30ppm	10 pF
FC7BSCCMC10.0-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	0°C ~ 70°C	10 MHz	±30ppm	20 pF
FC7BSCCMC11.0592-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	0°C ~ 70°C	11.0592 MHz	±30ppm	20 pF
FC7BSCCMC6.0-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	0°C ~ 70°C	6 MHz	±30ppm	20 pF
FC7BSCCMC7.3728-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	0°C ~ 70°C	7.3728 MHz	±30ppm	20 pF
FC7BSCCMC8.0-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	0°C ~ 70°C	8 MHz	±30ppm	20 pF
FC7BSCCMD8.0-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	-10°C ~ 60°C	8 MHz	±30ppm	20 pF
FC7BSCCMF8.0-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	-20°C ~ 70°C	8 MHz	±30ppm	20 pF
FC7BSCCMM6.0-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	-40°C ~ 85°C	6 MHz	±30ppm	20 pF
FC7BSCCMM7.3728-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	-40°C ~ 85°C	7.3728 MHz	±30ppm	20 pF
FC7BSCCMM8.0-T1	Fox	FC7BS	MHz Crystal	7mm	5mm	1.1mm	-40°C ~ 85°C	8 MHz	±30ppm	20 pF
FC80TDDRF10.045	Fox	FC80T	MHz Crystal	7.9mm	3.2mm	8.1mm	-20°C ~ 70°C	10.045 MHz	±25ppm	12 pF
FC8AQCCMC3.6864-T1	Fox	FC8AQ	MHz Crystal	10mm	4.5mm	1.2mm	0°C ~ 70°C	3.6864 MHz	±30ppm	20 pF
FC8AQCCMC4.0-T1	Fox	FC8AQ	MHz Crystal	10mm	4.5mm	1.2mm	0°C ~ 70°C	4 MHz	±30ppm	20 pF
FC8AQCCMC4.9152-T1	Fox	FC8AQ	MHz Crystal	10mm	4.5mm	1.2mm	0°C ~ 70°C	4.9152 MHz	±30ppm	20 pF
FC8AQCCMC6.0-T1	Fox	FC8AQ	MHz Crystal	10mm	4.5mm	1.2mm	0°C ~ 70°C	6 MHz	±30ppm	20 pF
FC8AQCCMM3.6864-T1	Fox	FC8AQ	MHz Crystal	10mm	4.5mm	1.2mm	-40°C ~ 85°C	3.6864 MHz	±30ppm	20 pF
FC8AQCCMM4.0-T1	Fox	FC8AQ	MHz Crystal	10mm	4.5mm	1.2mm	-40°C ~ 85°C	4 MHz	±30ppm	20 pF
FC8AQCCMM6.0-T1	Fox	FC8AQ	MHz Crystal	10mm	4.5mm	1.2mm	-40°C ~ 85°C	6 MHz	±30ppm	20 pF
FC9SDCBEF8.0-T1	Fox	FC9SD	MHz Crystal	13.2mm	4.8mm	3.2mm	-20°C ~ 70°C	8 MHz	±30ppm	10 pF
FC9SDCBMF8.0-T1	Fox	FC9SD	MHz Crystal	13.2mm	4.8mm	3.2mm	-20°C ~ 70°C	8 MHz	±30ppm	20 pF
FC9SDCBMM8.0-T1	Fox	FC9SD	MHz Crystal	13.2mm	4.8mm	3.2mm	-40°C ~ 85°C	8 MHz	±30ppm	20 pF
FC9STBCGF25.0	Fox	FC9ST	MHz Crystal	11.35mm	4.65mm	2.5mm	-20°C ~ 70°C	25 MHz	±50ppm	12 pF
FCABSHFEK32.0-T3	Fox	FCABS	MHz Crystal	1.2mm	1mm	0.33mm	-30°C ~ 85°C	32 MHz	±10ppm	10 pF
FK121EIWM0.032768-T5	Fox	FK121	kHz Crystal	1.27mm	1.05mm	0.5mm	-40°C ~ 85°C	32.768 kHz	±20ppm	9 pF
FK122EIHM0.032768-T3	Fox	FK122	kHz Crystal	2.1mm	1.2mm	0.6mm	-40°C ~ 85°C	32.768 kHz	±20ppm	12.5 pF
FK124EIWM0.032768-T5	Fox	FK124	kHz Crystal	1.2mm	1mm	0.35mm	-40°C ~ 85°C	32.768 kHz	±20ppm	9 pF
FK125EIVM0.032768	Fox	FK125	kHz Crystal	2mm	1.2mm	0.35mm	-40°C ~ 85°C	32.768 kHz	±20ppm	7 pF
FK12AEIHI0.032768-T3	Fox	FK12A	kHz Crystal	2mm	1.2mm	1mm	-40°C ~ 12°C	32.768 kHz	±20ppm	12.5 pF	AEC-Q200
FK135EIHM0.032768-T3	Fox	FK135	kHz Crystal	3.2mm	1.5mm	1mm	-40°C ~ 85°C	32.768 kHz	±20ppm	12.5 pF
FK13AEIBI0.032768-T3	Fox	FK13A	kHz Crystal	3.2mm	1.5mm	0.9mm	-40°C ~ 125°C	32.768 kHz	±20ppm	6 pF	AEC-Q200
FK13AEIHI0.032768-T3	Fox	FK13A	kHz Crystal	3.2mm	1.5mm	0.9mm	-40°C ~ 125°C	32.768 kHz	±20ppm	12.5 pF	AEC-Q200
FK13AEIWI0.032768-T3	Fox	FK13A	kHz Crystal	3.2mm	1.5mm	0.9mm	-40°C ~ 125°C	32.768 kHz	±20ppm	9 pF	AEC-Q200
FK13LEIBM0.032768-T3	Fox	FK13L	kHz Crystal	3.2mm	1.5mm	0.9mm	-40°C ~ 85°C	32.768 kHz	±20ppm	6 pF
FK145EIHM0.032768-T3	Fox	FK145	kHz Crystal	4.1mm	1.5mm	1mm	-40°C ~ 85°C	32.768 kHz	±20ppm	12.5 pF
FK161EIHM0.032768-T5	Fox	FK161	kHz Crystal	1.6mm	1mm	1mm	-40°C ~ 85°C	32.768 kHz	±20ppm	12.5 pF
FKFSREIBM0.032768-T3	Fox	FKFSR	kHz Crystal	8.7mm	3.7mm	2.5mm	-40°C ~ 85°C	32.768 kHz	±20ppm	6 pF
FKFSREIHM0.032768-T3	Fox	FKFSR	kHz Crystal	8.7mm	3.7mm	2.5mm	-40°C ~ 85°C	32.768 kHz	±20ppm	12.5 pF
FKFSXEIHM0.032768-T3	Fox	FKFSX	kHz Crystal	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz	±20ppm	12.5 pF
FKT15EIHD0.032768	Fox	FKT15	kHz Crystal	5mm	1.4mm	5.1mm	-10°C ~ 60°C	32.768 kHz	±20ppm	12.5 pF
FKT26EIBM0.032768	Fox	FKT26	kHz Crystal	6.3mm	2.1mm		-40°C ~ 85°C	32.768 kHz	±20ppm	6 pF
FKT38EIHM0.032768	Fox	FKT38	kHz Crystal	8.3mm	3.1mm		-40°C ~ 85°C	32.768 kHz	±20ppm	12.5 pF

FC3BACAGI16.0車規級晶振,寬溫晶振,耐高溫晶振

深圳市壹兆電子科技有限公司
聯系人：龔成

電話：0755--27876236
QQ：769468702
手機：13590198504
郵箱:zhaoxiandz@163.com
網站:http://www.gzghjx.com/
FC3BACAGI16.0車規級晶振,寬溫晶振,耐高溫晶振

九九热九九-中文字幕自拍偷拍-黄色小视频免费在线观看-涩涩视频在线播放-国产人人爽-久久夜色精品国产噜噜亚洲av-99re热这里只有精品视频-50一60岁老妇女毛片-国产精品刺激-国产福利一区二区视频-久久精品人人做人人爽

歡迎光臨：壹兆電子有限公司

晶振分類

常見問題

FC3BACAGI16.0晶振,FC3BA有源晶振,Fox Electronics福克斯晶振

相關產品

壹兆客服
